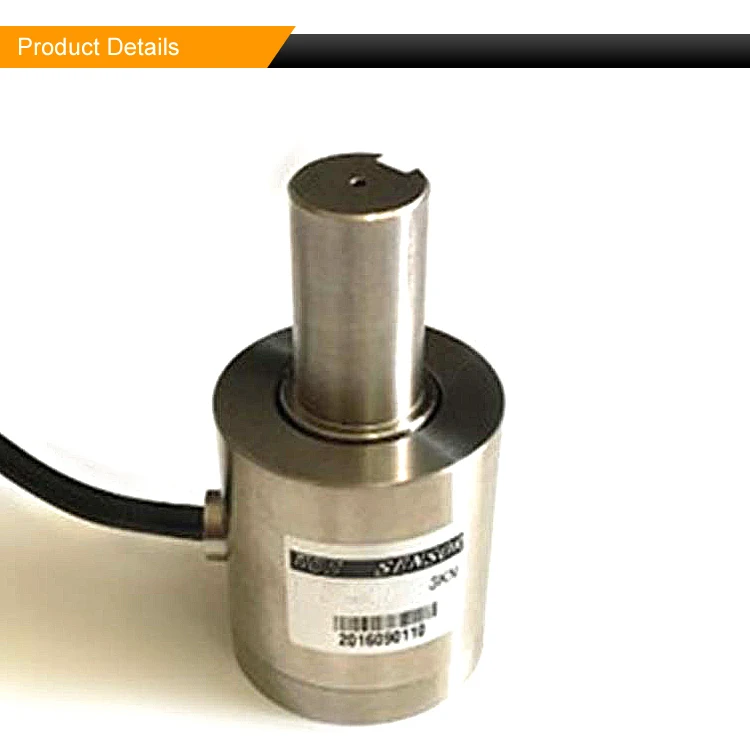

High performance cheap 100tT 3-Axis weighing Load Cell alloy steel multi-axis load sensor

FOB Reference Price:Get Latest Price
$56.00 - $650.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SAINTBOND multi-axis load sensor
Model Number:
MX007 multi-axis load sensor
Usage:
Measured weight of goods
Theory:
Turn a signal to a force signal
Output:
2.0mV/V or 3.0mV/V or according to customer's requirement
Product Name:
multi-axis load sensor
Material:
Alloy steel
Custom Design:
Welcome
Service:
OEM&ODM
MOQ:
1pcs per type per capacity
Production Time:
25~45 DAYS
Form of sale:
OEM & ODM Manufacture
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing of multi-axis load sensor : 1 pcs/carton,carton Size:35*30*20cm
Port
Ningbo or Shanghai
Lead Time :
we delivery multi-axis load sensor within 20~45 days

High performance cheap 100tT 3-Axis weighing Load Cell alloy steel multi-axis load sensor



Capacity:

50/100/200/200/1000/2000/3000kg~100t

Rated Output:

1.0mV/V ±0.1%

Safe Temp. Range:

-10ºC to + 70ºC

Zero Balance:

±2% of rated output

Temp. Compensated:

-10ºC to + 40ºC

Creep After 30 Minutes:

±0.5% of rated output

Safe Overload:

1.5

Nonlinearity:

±0.5% of rated output

Input Impedance:

387 ohm ± 20 ohm

Repeatability:

±0.5% of rated output

Output Impedance:

350 ohm ± 5 ohm

Temp. Effect On Output:

≤0.02% of applied output/ºC

Rated Excitation:

12V DC/AC

Temp. Effect On Zero:

≤0.02% of applied output/ºC

Maximum Excitation:

15V DC/AC

Features:

Three dimensional force sensor can simultaneously detect three-dimensional force information three (Fx, Fy, Fz), the control system can not only detect and control the robot gripper for the object grip, but also can detect the grasped object weight, as well as in grasping whether in the process of sliding and vibration. A three-dimensional force sensor fitted with side and top two, side mounted three-dimensional force finger force sensors are generally used for two finger robot gripper, top mounted three-dimensional finger force sensors are generally used for multi fingered robot hand.

Three dimensional force sensor is an important sensor of intelligent robot, which can simultaneously detect the full information of the three-dimensional space (Descartes coordinate system), that is, three force components and three moment components.

This product is widely used in precision assembly, automatic grinding, contour tracking, hand coordination, zero force teaching and other tasks, in the aerospace and mechanical processing, automotive and other industries have a wide range of applications.

The elastic body of the sensor adopts the patent structure, with high sensitivity, good rigidity, small coupling, and mechanical overload protection function. The synthesis of six components of the three dimensional space can be directly applied to the force control. The standard serial port and parallel port input and output. The product can not only control the computer to form a two level computer system, but also can connect the terminal to form an independent test device.
