15 Ton 30t Portable Truck Wheel Axle Load Weighing Scales System

FOB Reference Price:Get Latest Price
$185.00 - $555.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Axle Scale
Rated Load:
160Ton
Accuracy:
1~20kg
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Samples:
$350.00 /Sets | 1 Sets (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SAINTBOND
Model Number:
AS002D2
Power Supply:
100-240V
Display Type:
LED/LCDLED/LCD
Product Name:
Portable Axle Weighing Pad
Species:
OIMLIII /GB/T11883-2002
Custom Design:
Welcome
Form of sale:
Factory supply
Use:
Weigh the weight of the product
Features/Description:
High precision and stable performance
MEAS:
350x450~500x900mm
Market:
All over the world
Advantage:
OEM/ODM
Payment Terms:
30% advance payment, the rest payment before delivery
Product Certification Verified
CE Certified.
Valid from 2018-03-22 until 2049-12-31
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing of Portable Axle Weighing Pad :Carton
Port
Ningbo

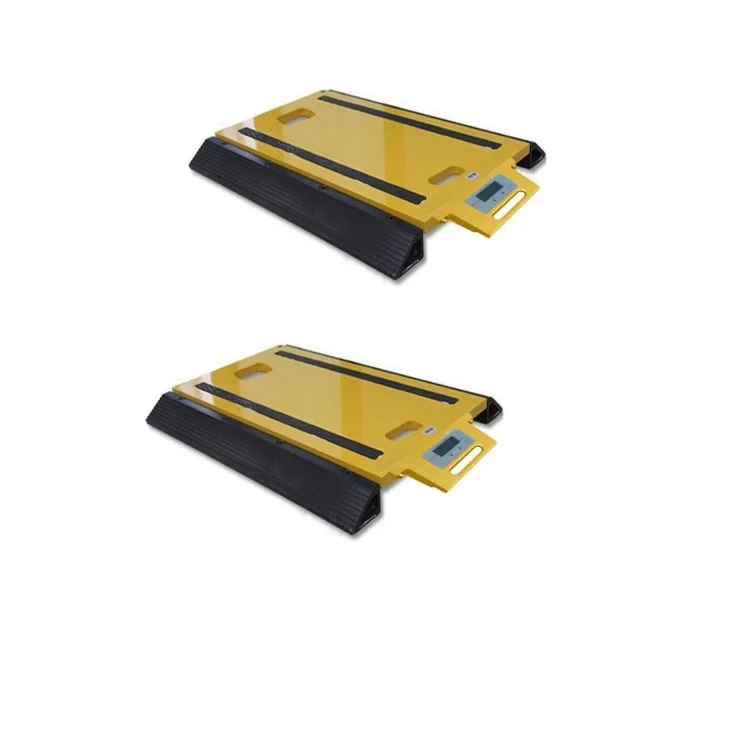

15 Ton 30t Portable Truck Wheel Axle Load Weighing Scales System

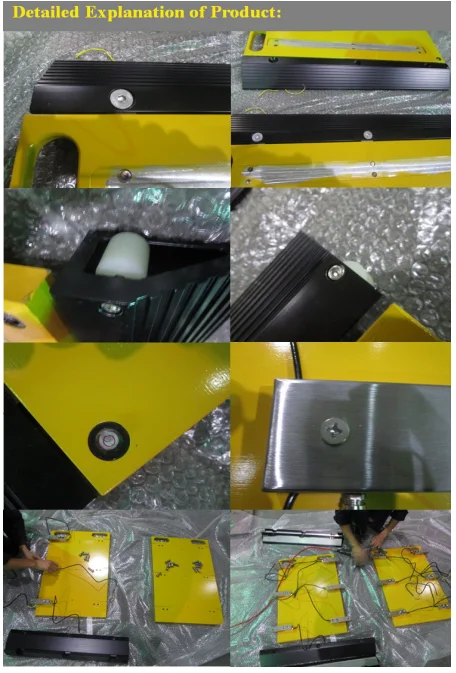

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

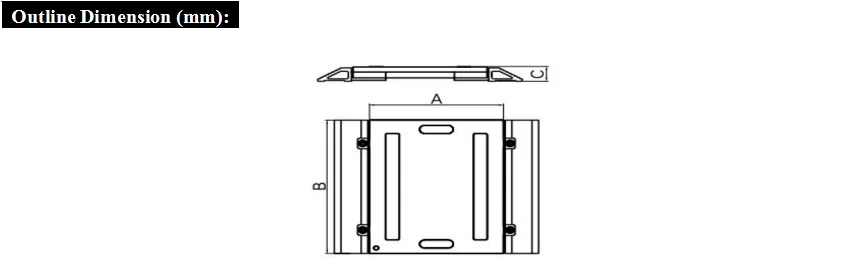

Model

Size(A×B×C)

(mm)

Capacity

(Double Pads for One Axel)

Description(Each Pad)



AS002

350×350×35

1000/2000/3000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:500/1000/1500Kg





400×500×56.5

3000/5000/6000/10000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:1500/2500/3000/5000Kg





450×700×56.5

10000/20000/30000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:5000/10000/15000Kg





500×900×56.5

20000/30000/40000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:10000/15000/200000Kg



Product Parameters

Rated load:1/2/3/5/6/10/20/30/40T

Compensated temp.range(℃): -10~+50

Dynamic error (%F.S): 3 (5~10km/h)

Static error (%F.S):0.1~0.3

Static comprehensive error(%F.S): 0.1~0.5

Insulation resistance(MΩ): ≥5000(100VDC)

Rated output(mV/V): 1.0±0.1

Use temp.range(℃): -30~+80

Non-linearity(%F.S): 0.2

Temp.effect on zero(F.S/10℃): 0.03

Error on corners(%F.S): 0.2

Temp.effect on span(F.S/10℃): 0.05

Repeatariy(%F.S): 0.05

Safe overload(%): 120

Zero balance(%F.S): ±1

Ultimate overload(%): 150

Excitation voltage(VDC): 9~15

Net weight(kg): 45

Recommended voltage(V): 10

Defend grade: IP66




FAQ:

Q: Could you offer more information about the products, and quote a best price ?
A: Yes, certainly, we will send our product catalogue and company introduction for your reference.

You can choose one or some model, I will advice suitable one for you, also with best price details.

Q: Are you manufacture or trading company ?
A: We are manufacture, also have own export right under our export company. Welcome to visit our factory, check our quality and service.

Q: How long is your delivery time ? What's your payment terms ?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Payment terms is TT, LC, Cash, also can be negotiation with us.

Q: Your price is a little bit higher than my target, can you offer a better price ?
A: Yes, price can be negotiation, we try our best to meet your target, let's find a win-win solution, we always keep long term cooperation relations with customers.
